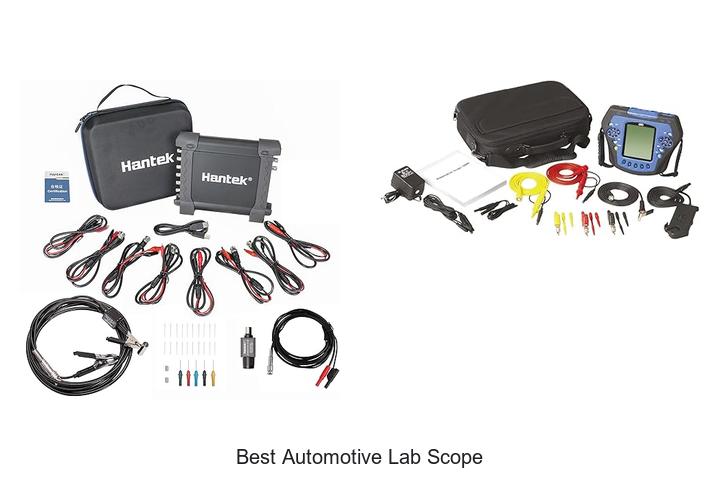

Best Automotive Lab Scope: Unlock Hidden Car Issues Fast!

Working on vehicle diagnostics often requires precise data to identify electrical issues quickly and accurately. Without the right tools, pinpointing problems in complex automotive systems can become frustrating and time-consuming. The best automotive lab scope answers this need by providing clear waveforms and detailed readings, helping mechanics and hobbyists alike diagnose problems with confidence.

Designed for anyone who works on vehicle electronics—from professional technicians to dedicated DIYers—this tool offers reliable performance and user-friendly features. In this review, we will explore key aspects such as ease of use, functionality, durability, and accuracy.

Whether you need a tool for testing ignition systems, sensors, or other electronic components, this guide will help you understand which lab scope fits your requirements and delivers consistent results.

Unlocking Precision and Performance: Top Picks for Diagnostic Excellence

Image	Product	Price
Our Top Picks 1	Hantek 1008C+HT201+HT30A+HT307 PC USB 8CH Automotive Diagnostic Digital Oscilloscope/DAQ/Programmable Generator	Check Price Now
Our Top Picks 2	OTC 3840F 2-Channel Automotive Lab Scope Kit	Check Price Now
Our Top Picks 3	FNIRSI 2C53P Handheld Tablet Oscilloscope Multimeter DDS Signal Generator 3	Check Price Now

1. Hantek 1008C+HT201+HT30A+HT307 PC USB 8CH Automotive Diagnostic Digital Oscilloscope/DAQ/Programmable Generator

Hantek 1008C+HT201+HT30A+HT307 stands out as a versatile automotive diagnostic tool with eight channels. Combining an oscilloscope, DAQ, and programmable generator into one device, it suits both professional and hobbyist use.

Its comprehensive automotive functions help detect ignition issues, sensor stability, and bus communications rapidly. The device offers detailed insight into vehicle system performance effortlessly.

Designed for precision, the oscilloscope includes eight analog channels with 12-bit resolution and 4K memory depth. A real-time sampling rate of

There are twenty automatic measurement modes accessible via simple one-key activation to assist in quick result analysis.

The integrated programmable signal generator covers 0-250KHz frequency with LVTTL output levels. It can simulate crankshaft and camshaft signals, adding a practical dimension for testing engine components. Data can be transferred smoothly through the USB

Data can be transferred smoothly through the USB 0 connection and is fully compatible with Windows software.

Its intuitive operation makes it suitable for electricians and technicians, as well as anyone interested in automotive electronics. The durable build supports consistent use in workshop environments. There is also included hardware such as probes and clamps for immediate deployment.

This tool balances advanced features with ease of use, offering strong value for diagnostic and repair tasks on cars and electronic appliances.

Pros

• Eight analog channels with high-resolution sampling for detailed diagnostics
• Extensive automotive diagnostic functions covering ignition, sensors, and bus systems
• Programmable signal generator capable of simulating critical engine signals

Cons

• Software support limited to Windows operating systems

Offering a comprehensive set of diagnostic tools, the Hantek 1008C+ bundle delivers excellent performance and practical features. It suits users focused on automotive troubleshooting and circuit testing with a straightforward interface.

Compared to similar oscilloscopes, its multiple channels and integrated signal generation bring added flexibility at a competitive level.

2. OTC 3840F 2-Channel Automotive Lab Scope Kit

Diagnosing automotive electrical systems requires precision and clarity. The OTC 3840F 2-Channel Automotive Lab Scope Kit brings vital diagnostic information to your fingertips, making vehicle troubleshooting faster and more accurate.

Its comprehensive data and easy-to-read display help reduce guesswork during repairs.

Designed for use with many domestic and imported vehicles, this lab scope combines detailed guidance with practical features. It supports quick identification of wiring issues and component faults, streamlining your workflow without sacrificing accuracy.

The device’s durability and trusted brand reputation make it a reliable addition to any automotive toolkit.

The OTC 3840F provides built-in reference data covering most domestic and imported vehicles. It visually displays pin numbers and wire colors directly on the screen for PCM and component connectors, which helps in identifying testing points promptly.

Each preset test includes valuable details such as test procedures, reference signal patterns, operational theory, and troubleshooting tips.

Its rugged design includes a heavy-duty stainless steel probe with an insulated shaft and a strong clip with a positive soldered connection. These features ensure long-lasting performance even in demanding workshop conditions.

The scope’s 2-channel capability allows simultaneous data capture from multiple sources, enhancing diagnostic efficiency.

Operation is straightforward, thanks to clear on-screen diagrams and guided steps, making it accessible to both professionals and experienced DIYers. While it carries a higher upfront investment, the comprehensive data and durable construction provide consistent value over time. This kit fits technicians aiming for accurate diagnostics without repeatedly consulting external manuals.

This kit fits technicians aiming for accurate diagnostics without repeatedly consulting external manuals.

Pros

• Extensive built-in test procedures and reference information.
• Clear, on-screen wiring diagrams and signal pattern visuals.
• Durable probes with insulated shafts and secure connections.

Cons

• Battery pack longevity may be a concern given age and availability.

This automotive lab scope is a dependable diagnostic tool that aids quick and accurate troubleshooting. It effectively combines comprehensive vehicle-specific data with robust hardware quality. When compared to similar scopes in this category, its detailed reference content and rugged probe design set it apart.

Consider this kit for thorough diagnostics that reduce repair time and uncertainty.

3. FNIRSI 2C53P Handheld Tablet Oscilloscope Multimeter DDS Signal Generator 3

Discover the FNIRSI 2C53P, a versatile handheld tablet oscilloscope multimeter designed for professional and hobbyist use. Its compact design combines powerful measurement tools with a bright

Along with advanced functionality, it features a DDS signal generator capable of producing various waveforms up to 10 MHz. This device brings laboratory-grade tools into a portable package suitable for fieldwork and bench testing.

The FNIRSI 2C53P offers a dual-channel oscilloscope with a fast 250 MS/s sampling rate and a 50 MHz bandwidth, supporting detailed waveform capture and analysis. With a 19999-count multimeter, it provides accurate measurements of voltage, current, resistance, and other values, including max and min readings on a crystal-clear IPS screen.

Equipped with an FPGA + MCU + ADC hardware architecture, the unit guarantees precise signal processing and stable output. The DDS signal generator enhances testing capabilities by supporting 12 waveform types, ideal for various automotive and electronic diagnostics.

Ease of operation is emphasized with one-key AUTO measurement, and multiple triggering modes make capturing transient events straightforward. The X-Y mode allows comparison of phase and amplitude between signals, while FFT analysis helps identify harmonic content for complex waveform assessment.

Durability comes from a sturdy design paired with a long-lasting 4000 mAh lithium battery, enabling about 4 hours of continuous usage with convenient Type-C charging. User interface controls are intuitive, with a responsive touchscreen that simplifies navigation during measurements.

When compared with similar handheld scopes, the FNIRSI 2C53P stands out for its combination of comprehensive features and portability. This device fits perfectly in automotive workshops, electronics labs, and for field service engineers requiring reliable performance outside a traditional bench setup.

Pros

• High-resolution 4.3-inch IPS touchscreen with easy navigation
• Dual-channel oscilloscope with 250 MS/s sampling rate and 50 MHz bandwidth
• Integrated DDS signal generator outputting up to 10 MHz waveforms

Cons

• Some oscilloscope controls could benefit from further refinement

The FNIRSI 2C53P handheld oscilloscope multimeter combines accuracy, functionality, and portability, offering a compelling choice for automotive and electronics professionals. Its strong feature set, user-friendly interface, and solid build quality make it a dependable tool for various diagnostic tasks.

4. Hantek 1008C PC USB 8CH Automotive Diagnostic Digital Oscilloscope/DAQ/Programmable Generator

Discover the Hantek 1008C PC USB 8CH Automotive Diagnostic Digital Oscilloscope, designed to deliver precision and versatility for automotive troubleshooting. It merges advanced diagnostic functions with general oscilloscopic capabilities to simplify complex signal analysis.

Speed and accuracy come together in this tool, making it an excellent choice for anyone working with automotive electronics or general circuit diagnostics. Its programmable signal generator adds a flexible dimension, enhancing testing capabilities.

The Hantek 1008C features eight analog channels with 12-bit resolution, offering clear and detailed waveform capture. It supports a

4MSa/s real-time sampling rate and stores up to 4K memory depth, ensuring you don’t miss critical signal changes. The device includes 20 automatic measurement modes that are easily toggled for convenient monitoring.

Its built-in automotive diagnostic functions cover over 80 different scenarios including ignition, sensors, bus detection, actuators, and charging systems. This wide range equips users to quickly assess vehicle system stability and identify faults accurately.

Designed with a user-friendly interface, the oscilloscope connects through a USB 0 port to PC software compatible with Windows.

The combination of detailed diagnostics and signal generation at this level of accessibility provides substantial value for diagnostic and repair tasks.

Pros

• Eight analog channels with high-resolution capture for precise analysis.
• Over 80 automotive diagnostic functions for comprehensive troubleshooting.
• Programmable signal generator simulates key engine signals effectively.

Cons

• Compatible only with Windows, limiting use with other operating systems.

Overall, the Hantek 1008C stands out in the category of automotive oscilloscopes by combining multiple diagnostic needs into one compact device. It strikes a strong balance between functionality and ease of use, making it a smart investment for a range of users.

Below is a specification summary for quick reference.

5. Teslong Two-Way Articulating Borescope with Light, Industrial Endoscope Inspection Camera

Inspecting hard-to-reach places becomes a seamless task with the Teslong Two-Way Articulating Borescope. Its flexible probe and clear display offer exceptional visibility in tight and complex areas. An essential tool for automotive maintenance and household diagnostics, it drastically improves the inspection experience.

An essential tool for automotive maintenance and household diagnostics, it drastically improves the inspection experience.

Designed for precision and ease of use, this borescope provides detailed imagery and effective maneuverability. Bright LED lighting and a long-lasting battery enlarge inspection possibilities even in challenging environments. It’s ready to assist professionals and hobbyists alike in achieving flawless inspections quickly.

The Teslong borescope stands out with its 5-foot semi-rigid gooseneck cable, providing a balance between flexibility and sturdiness. This feature ensures the probe maintains its shape while exploring confined spaces, enhancing control and accuracy during inspections. Its articulating head moves two ways with a user-friendly joystick placed conveniently for one-handed operation.

Its articulating head moves two ways with a user-friendly joystick placed conveniently for one-handed operation.

A vivid 5-inch IPS LCD color display delivers bright, high-resolution images without any need for external apps. Whether in full sunlight or low light, the adjustable LED illumination on the camera probe ensures details remain visible.

Whether in full sunlight or low light, the adjustable LED illumination on the camera probe ensures details remain visible. The device captures high-quality 1080p videos and 2 MP photos, stored on a micro SD card for easy review and sharing.

Built for extended use, its lightweight and ergonomic design minimizes fatigue, making it suitable for professionals such as plumbers and mechanics. Compared to similar products, this borescope offers superior image clarity and brighter lighting, contributing to fewer mistakes and faster problem identification.

It adapts well to automotive, industrial, and household inspections, offering substantial value and reliability.

Pros

• Two-way articulating probe with precise joystick control
• Bright 4.5-inch IPS LCD screen with high-resolution imagery
• Adjustable LED lights for clear visibility in dark areas

Cons

• Articulating head is delicate and requires careful handling

Combining maneuverability, clear visuals, and ease of use, the Teslong Two-Way Articulating Borescope provides dependable performance for detailed inspections. Its thoughtful controls and bright display equip users with the confidence to diagnose issues efficiently.

6. TOPDON Phoenix Scope, 4 Channel Oscilloscope with Accessories, Works with

Discover the efficiency and precision of the TOPDON Phoenix Scope, a four-channel oscilloscope designed for automotive diagnostics. This advanced tool simplifies complex electronic testing, providing clear waveform visuals and fast, accurate measurements. It empowers professionals to identify automotive electrical faults with greater confidence and speed.

Engineered for seamless integration, this scope complements your existing Phoenix diagnostic devices. The Phoenix Scope streamlines signal capture, recording, and analysis, making troubleshooting more precise and less time-consuming. Its versatile capabilities enhance any automotive electronics workflow.

Its versatile capabilities enhance any automotive electronics workflow.

The TOPDON Phoenix Scope delivers an exceptional user experience through its 50M memory depth and innovative zoom technology. Viewing both broad and detailed waveforms simultaneously accelerates debugging processes, cutting troubleshooting time significantly.

Its one-tap fast waveform storage saves your data instantly, boosting workflow efficiency.

Designed for comprehensive analysis, it supports waveform recording, playback, and complex mathematical operations, including FFT. This broad functionality helps detect subtle signal abnormalities that might otherwise go unnoticed. The scope works exclusively with compatible Phoenix tools, expanding its automotive diagnostic capabilities with 23 automatic measurements visible at a glance.

Ergonomic design prioritizes usability. Features like soft keyboard input simplify data entry, while adjustable settings can be saved and retrieved for consistency across sessions.

Pros

• High memory depth with dual waveform display for detailed analysis
• Fast, one-tap waveform storage reduces save time by over 70%
• Supports advanced math operations and FFT for in-depth diagnostics

Cons

• Requires compatible Phoenix diagnostic tools to operate

Combining powerful features with user-friendly controls, the TOPDON Phoenix Scope is a valuable addition for professionals focusing on automotive electronics. Its exclusive compatibility with Phoenix tools ensures reliable performance tailored for vehicle diagnostics. With precise measurements, fast data handling, and advanced analysis options, it stands out among standard automotive lab scopes.

With precise measurements, fast data handling, and advanced analysis options, it stands out among standard automotive lab scopes.

7. DXZtoz Two-Way Articulating Borescope with Light, Video Industrial Endoscope Inspection

Discover unmatched visibility in tight and complex spaces with the DXZtoz Two-Way Articulating Borescope. Its flexible camera and bright LED lights provide clear visual inspection where traditional scopes fall short.

Whether working on engines or plumbing, precise control helps you find hidden issues quickly. Equipped with a crisp 3-inch IPS screen, this industrial endoscope delivers vibrant colors and detailed images.

Designed to withstand tough environments, it’s an excellent companion for mechanics, technicians, and DIY users needing a reliable inspection tool.

Offering a unique 210° two-way articulating camera, the DXZtoz borescope allows easy maneuvering around corners and obstacles. The 5mm diameter camera head fits into small openings while providing sharp

0MP resolution and 8x zoom. Four adjustable LED lights ensure visibility even in complete darkness.

Built with a sturdy IP67 waterproof and oil-resistant probe, the flexible metal gooseneck holds its shape well. It handles wet and oily environments effortlessly, making inspection in plumbing or engine compartments hassle-free.

The monitor’s true color display enhances detail recognition for better diagnostics. Controls are intuitive, with no app or external device needed. A rechargeable 3000mAh battery promises up to 4 hours of continuous use.

Included accessories like a hook, magnet tip, and mirror extend practical functions for retrieving or viewing hard-to-access areas. Overall, this borescope balances strong performance with convenient portability and ease of use.

While smaller than some high-end models, it delivers reliable imaging suitable for close-up engine work, electrical inspections, and home maintenance. It fits well for users seeking a versatile, budget-conscious inspection solution that covers most professional demands. Compared to non-articulating scopes, the DXZtoz stands out by offering flexible tip control and a bright, clear display.

Pros

• 210° two-way articulating camera for flexible viewing angles
• Waterproof and oil-resistant, suitable for various environments
• 4.3-inch true color IPS display with 8x digital zoom and adjustable LED lighting

Cons

• Minimum bend radius of the probe may limit access in very tight spaces

The DXZtoz Two-Way Articulating Borescope combines practical features and durable construction to simplify detailed inspections. Its articulating tip and bright screen deliver a clear advantage over fixed lenses. This tool enhances visibility and diagnosis accuracy while saving time on complex tasks.

This tool enhances visibility and diagnosis accuracy while saving time on complex tasks.

8. Hantek 1008C PC USB 8CH Automotive Diagnostic Digital Oscilloscope/DAQ/Programmable Generator

Enhance vehicle diagnostics with a versatile and efficient oscilloscope designed for automotive professionals and hobbyists. The Hantek 1008C offers multi-channel functionality combined with practical diagnostic tools to streamline vehicle testing.

Its extensive automotive diagnostic functions and integrated video help feature support comprehensive analysis. This device simplifies complex tasks into accessible steps for users.

Designed specifically for automotive testing, the Hantek 1008C features eight channels to monitor multiple signals simultaneously. It covers over 80 diagnostic functions including ignition systems, sensors, communication buses, starter circuits, and charging systems.

The oscilloscope comes with a video help function, which provides real-time online diagnostic guides. Diagnostic results can be saved, printed, or screenshotted easily with a single push-button, adding convenience and improving workflow efficiency. Along with the hardware, the software supports data management, though there is a slight learning curve for beginners.

The build quality ensures durability while keeping the device lightweight and portable. Included accessories such as probes, alligator clips, and coaxial connectors enhance functionality.

This tool suits mechanics, automotive students, and DIY vehicle inspectors who need detailed diagnostics without investing in highly expensive equipment.

Pros

• Eight-channel oscilloscope for simultaneous multi-signal monitoring
• Over 80 automotive diagnostic functions covering ignition, sensors, and bus detection
• Video help feature offers guided diagnostic support with easy report saving options

Cons

• Basic leads included are low quality and may need replacement for reliable use

The Hantek 1008C PC USB Automotive Oscilloscope is a solid choice for those needing detailed and reliable vehicle diagnostics. While the software interface requires some patience, the overall features and channel capabilities provide excellent value. This model stands out for its comprehensive test functions and easy data management, making it a practical tool in automotive diagnostics.

This model stands out for its comprehensive test functions and easy data management, making it a practical tool in automotive diagnostics.

9. Teslong Two-Way Articulating Borescope, 5.5mm Slim Probe, 5.0” Industrial Endoscope

Discover exceptional inspection capabilities with the Teslong Two-Way Articulating Borescope. Designed to provide detailed visuals in tight, hard-to-reach spaces, its slim probe and flexible design enhance precision in various tasks. The upgraded 5-inch IPS LCD screen delivers crisp, vibrant images for thorough analysis.

The upgraded 5-inch IPS LCD screen delivers crisp, vibrant images for thorough analysis.

Careful inspection becomes easier thanks to the articulating camera head and bright LED lighting. Whether dealing with automotive repairs or industrial maintenance, this tool bridges visibility gaps effectively without the need for disassembly.

The borescope features a slim 5mm probe, allowing access to narrow conduits often unreachable by bulkier models. Its 5-foot flexible gooseneck and 210° rotatable camera head provide smooth control over viewing angles.

Inspections take on new convenience with fixed magnifications of 3x and

5x that highlight intricate details clearly.

Equipped with six high-brightness LEDs, the lighting adjusts to varying conditions for optimal visibility. The ergonomic design combines intuitive button placement with lightweight construction, making prolonged use comfortable.

Durability is prioritized with a sturdy storage case and a rechargeable 3000mAh battery, supporting extended operation periods. Ideal for automotive diagnostics, home maintenance, and professional environments, this borescope offers strong performance and excellent user-friendliness.

Pros

• Ultra-thin 5.5mm probe easily reaches confined spaces
• Two-way articulating camera head with 210° rotation
• Bright adjustable 6-LED lighting for clear visibility

Cons

• 720p video resolution may not satisfy users needing higher definition

The Teslong borescope stands out by combining portability, clear imaging, and flexible maneuverability, making inspections straightforward and efficient. Its well-considered design supports various applications, eliminating guesswork in diagnostics.

For those seeking a capable inspection camera with excellent handling and visual fidelity, this tool proves to be a valuable asset.

10. Garnish Gripper Mechanic’s Stethoscope Automotive Engine Diagnostic Sensitive Hearing Tool

The Garnish Gripper Mechanic’s Stethoscope offers a precise way to diagnose engine and mechanical noises. Designed for easy access in tight spaces, it helps identify issues quickly and accurately.

Its sensitive hearing capability makes it a valuable tool for both professionals and DIY users.

This automotive diagnostic tool comes equipped with flexible hearing pipes and metal probes to reach difficult areas inside engines. Whether troubleshooting valve trains or bearings, it delivers clear audio feedback to pinpoint the exact source of noise efficiently.

Featuring two metal probes of lengths 43 and

The flexible tubing combined with metal needles enables sharp sound transmission without distortion or interference.

Constructed with a shockproof ABS handle, it feels sturdy and durable in use. The quality headset provides comfortable wear for extended diagnostic sessions, delivering excellent sound clarity. Locating engine noises like valve issues and bearing irregularities becomes straightforward with this design.

Locating engine noises like valve issues and bearing irregularities becomes straightforward with this design.

The mechanism quickly isolates noise sources in transmissions and other automotive components. It is highly sensitive, which helps technicians identify subtle mechanical faults. Easy assembly and intuitive operation make it suitable for any skill level.

Comparatively, this tool performs as well as more costly models but comes at a more approachable value. It suits mechanics who demand accuracy and simplicity in their diagnostic instruments without extra complications.

Pros

• Includes dual metal probes for versatile access to tight engine areas
• Shockproof ABS handle enhances durability and comfort during use
• Highly sensitive to detect faint noises quickly and accurately

Cons

• Limited to auditory diagnostics; not a comprehensive engine analysis tool

The Garnish Gripper Stethoscope stands out by combining simplicity, precision, and durability. It is an excellent choice for anyone needing to identify engine noises without hassle.

11. Teslong Endoscope Borescope with Light, Snake Inspection Camera for Automotive

Experience detailed inspections with the Teslong Endoscope Borescope. Designed for clear visibility in dark spaces, it combines advanced lighting and sharp imaging for practical use. Whether handling automotive repairs or home maintenance, this versatile tool aids in reaching confined areas effortlessly.

Whether handling automotive repairs or home maintenance, this versatile tool aids in reaching confined areas effortlessly.

Equipped with an adjustable 8 LED lighting system, the camera illuminates tight spots with clarity. Its wide 78° viewing angle and 180° rotating display help capture comprehensive views.

5x zoom supports in-depth scrutiny of small components, making inspection accurate and efficient.

Built to last, the 5ft semi-rigid cable maintains shape, granting precise navigation in difficult spaces. Its waterproof rating of IP67 ensures durability in damp or dusty conditions, fitting use in automotive, plumbing, and HVAC fields.

Its waterproof rating of IP67 ensures durability in damp or dusty conditions, fitting use in automotive, plumbing, and HVAC fields. The 8mm camera probe suits examining narrow pipelines or engine compartments.

The 3-inch LCD screen shows crisp real-time images, simplifying the evaluation process. Operability is straightforward with no complex setup—simply power on and operate via ergonomic controls.

Operability is straightforward with no complex setup—simply power on and operate via ergonomic controls. The rechargeable 1500mAh battery supports up to three hours of continuous use, allowing uninterrupted work during inspections.

Capture freeze frames, photos, and videos easily, storing data on an SD card or transferring via cable. Accessories such as a hook, magnet, and side mirror increase the tool’s functionality for diverse inspection needs. Backed by a 24-month warranty, this inspection camera offers dependable performance to mechanics, plumbers, and DIY users alike.

Backed by a 24-month warranty, this inspection camera offers dependable performance to mechanics, plumbers, and DIY users alike.

Pros

• Bright 8 LED lights with adjustable brightness for clear visibility
• Durable 16.5ft semi-rigid cable provides precise control in tight spaces
• Capability to capture photos and videos with storage on SD card

Cons

• SD card not included and must be purchased separately

The Teslong Endoscope Borescope offers a practical and reliable solution for detailed inspections in confined or dark areas. Its combination of durable build, bright lighting, and image capturing features enhances workflow accuracy. Ideal for professionals and hobbyists looking for a dependable inspection camera with clear display and long reach.

12. Endoscope Camera with Light, 1920P HD Bore Scope Borescope with

Designed for detailed inspections and close-up views in hard-to-reach areas, the Endoscope Camera with Light delivers clear and precise imagery. With its high-definition resolution and waterproof design, this tool enhances visibility in various conditions seamlessly.

Whether for automotive, home, or industrial use, capturing photos and videos is simple and effective.

Compact yet powerful, the 9mm camera probe combines ease of handling with advanced features. An adjustable LED light source helps illuminate dark spaces, ensuring better clarity and accuracy for every inspection task.

An adjustable LED light source helps illuminate dark spaces, ensuring better clarity and accuracy for every inspection task.

Boasting a super Hi-Vision 2-million-pixel camera, it captures stunning 1920×1440 HD images and videos compatible with iPhones and iPads. The semi-rigid

This flexibility expands its usability across automotive diagnostics and household repairs.

Constructed with an IP67 waterproof rated probe, the device withstands wet environments, including brief underwater applications up to three meters depth. The eight adjustable LED lights provide sufficient brightness, enhancing image quality in low-light conditions without glare.

Included accessories like a hook, magnet, and side mirror add convenience for retrieving small objects or inspecting difficult angles. The user-friendly app connection ensures quick setup and intuitive operation, making it suitable for both professionals and DIY users.

Pros

• High-definition 1920×1440 resolution supports sharp images and videos
• IP67 waterproof camera suitable for wet and underwater inspections
• Flexible 16.4-foot semi-rigid cable reaches tight spaces with ease

Cons

• Not designed for extended use deeper than three meters underwater

This endoscope is a practical and reliable inspection tool offering excellent visual access in confined spaces. Its combination of high resolution, waterproof design, and flexible cable makes it an asset for various tasks.

Ideal for automotive repairs, home maintenance, and industrial checks, the package includes helpful attachments that enhance functionality.

Top Tips to Choose the Best Automotive Lab Scope

User interface and ease of use

When selecting the best automotive lab scope, attention to user interface and ease of use plays a significant role in enhancing the diagnostic experience. Devices that feature intuitive controls and menus allow users to operate the tool smoothly without spending excessive time on navigation, which is especially helpful for beginners. Compatibility with software and regular updates ensures that the lab scope stays current with evolving vehicle technologies, providing reliable performance over time.

Built-in data recording and analysis tools can simplify the process of capturing and reviewing electrical signals, enabling users to identify issues quickly and accurately. Choosing a model that balances straightforward operation with powerful diagnostic functions will contribute greatly to efficient automotive troubleshooting and maintenance tasks.

Durability and portability

When choosing the best automotive lab scope, paying attention to the build quality and ruggedness can make a substantial difference in how well the device withstands demanding workshop conditions. A well-built scope will resist impacts, dust, and moisture, allowing for reliable use day after day.

Size and weight also play a significant role, especially for technicians who need to carry the tool to different job sites or use it in tight engine compartments. A compact and lightweight design enhances maneuverability without sacrificing screen size or functionality. Battery life and power options are equally important; devices equipped with long-lasting batteries or flexible charging methods provide greater freedom and convenience during extended diagnostics.

Balancing these factors will result in a durable and portable automotive lab scope that supports efficient troubleshooting wherever you work.

Understanding automotive lab scopes

Automotive lab scopes serve as valuable tools for diagnosing and analyzing electrical signals within vehicles, helping to identify issues with components such as sensors, actuators, and ignition systems. They are typically used in workshops and garages to capture waveforms from various engine and electronic control units, allowing mechanics to visualize and interpret signals that indicate the health and performance of automotive parts. These scopes generally come in different types, including handheld portable models for mobility and benchtop versions for more detailed examination in a fixed setting.

These scopes generally come in different types, including handheld portable models for mobility and benchtop versions for more detailed examination in a fixed setting. Key components often include multiple input channels to monitor various signals simultaneously, adjustable trigger settings to capture specific events, and clear digital displays for accurate waveform visualization. When selecting a lab scope, it helps to consider factors such as sampling rate, bandwidth, ease of use, and compatibility with automotive probes to ensure it matches the intended diagnostic tasks and vehicle systems.

Understanding these features and use cases allows buyers to choose a device that best suits routine maintenance, advanced troubleshooting, or educational purposes in automotive electronics.

Key performance specifications

Choosing the right automotive lab scope involves paying close attention to bandwidth and sampling rate since these factors affect how accurately the device captures rapid electronic signals found in vehicle systems. Having multiple input channels allows simultaneous monitoring of different components, which is particularly useful for diagnosing complex issues, while higher resolution provides clearer signal details for more precise analysis.

When shopping for a lab scope, matching these features to your typical use cases—whether troubleshooting sensors, ignition systems, or communication signals—will help ensure that the tool meets your needs without unnecessary extras or complexity.

Connectivity and compatibility

When evaluating the best automotive lab scope, connectivity and compatibility play key roles in how effectively the device integrates into your diagnostic workflow. Vehicle interface options vary, with some scopes offering direct connections through OBD-II ports or specialized adapters tailored to different makes and models, allowing for seamless data capture. Integration with diagnostic software can elevate the functionality by providing advanced analysis tools and easier interpretation of waveforms, so choosing a scope compatible with popular software platforms is advantageous.

Deciding between wireless and wired connections often depends on your workspace and preferences; wireless options provide greater mobility and reduce cable clutter, while wired connections tend to offer more stable data transfer and reduced latency. Balancing these aspects helps in selecting a lab scope that communicates smoothly with your vehicle’s systems and existing diagnostic tools, enhancing efficiency during troubleshooting and repairs.

Budget and warranty considerations

Choosing the best automotive lab scope becomes much easier when price range and value for money are taken into account. Devices within a moderate price bracket often offer a balanced combination of performance and essential features, making them suitable for beginners without sacrificing quality. Included accessories and extras can also add significant value; items such as test leads, clamps, or carrying cases enhance usability and convenience, allowing users to get started right away without additional purchases.

Included accessories and extras can also add significant value; items such as test leads, clamps, or carrying cases enhance usability and convenience, allowing users to get started right away without additional purchases. Warranty and customer support play an important role in the overall buying experience, providing peace of mind and assistance if any issues arise during the product’s lifespan. A solid warranty period accompanied by responsive customer service reflects the manufacturer’s confidence in the product and commitment to user satisfaction, which can be especially reassuring for those new to using automotive lab scopes.

Frquently Asked Questions

What Are The Top-Rated Automotive Lab Scopes Available In The Market?

Top-rated automotive lab scopes available in the market include the PicoScope by Pico Technology, known for its high resolution and advanced diagnostic features. Its user-friendly interface and extensive automotive software make it a favorite among professionals. Another leading option is the Autel MaxiScope, which offers versatility and real-time data analysis, making it suitable for various vehicle diagnostics. Additionally, the Snap-on EtherScope combines portability with powerful waveform analysis, ideal for on-the-go mechanics. These lab scopes provide accurate readings, helpful for engine diagnostics, sensor testing, and electrical troubleshooting, ensuring efficient and precise automotive repairs.

What Features Should I Look For In The Best Automotive Lab Scope?

When choosing the best automotive lab scope, prioritize high resolution and fast sample rates to capture detailed and accurate waveforms essential for diagnosing complex automotive systems. Look for a wide input voltage range and multiple channels to analyze different signals simultaneously, enhancing diagnostic versatility. Additionally, consider user-friendly software with intuitive controls and comprehensive data analysis tools. Portability and durable design are important for fieldwork, while features like waveform storage and syncing with mobile devices can improve workflow efficiency. These characteristics ensure reliable, precise diagnostics in various automotive applications.

What Is The Price Range For High-Quality Automotive Lab Scopes?

High-quality automotive lab scopes typically range from $500 to $3,000, depending on features, brand, and capabilities. Entry-level models suitable for basic diagnostics start around $500 to $1,000, offering essential waveform analysis and data logging. Mid-range scopes, priced between $1,000 and $2,000, provide enhanced resolution, faster sampling rates, and greater channel counts. Premium automotive lab scopes, costing $2,000 to $3,000 or more, include advanced functionalities such as wireless connectivity, extensive software support, and comprehensive protocol analysis. These are ideal for professional technicians requiring precise and efficient vehicle diagnostics.

How Do Automotive Lab Scopes Compare To Traditional Multimeters In Vehicle Diagnostics?

Automotive lab scopes offer a dynamic, real-time view of electrical signals in a vehicle, allowing technicians to observe waveforms, patterns, and fluctuations that traditional multimeters cannot capture. While multimeters measure static values like voltage, current, and resistance, lab scopes provide detailed insights into complex systems such as ignition timing, fuel injector pulses, and sensor outputs. In vehicle diagnostics, this means lab scopes can identify intermittent issues and signal abnormalities more accurately, leading to faster and more precise troubleshooting. Although multimeters are essential for basic checks, lab scopes enhance diagnostic capabilities by visualizing how components perform under actual operating conditions.

How Does An Automotive Lab Scope Help Diagnose Engine And Electrical Problems?

An automotive lab scope is a valuable diagnostic tool that helps technicians visualize and analyze electrical signals within a vehicle’s systems. By displaying waveforms in real-time, it allows for precise detection of irregularities such as voltage drops, signal distortions, or timing issues. This detailed insight is crucial for pinpointing problems that traditional multimeters might miss. In diagnosing engine problems, the lab scope can monitor components like ignition coils, fuel injectors, and sensors, revealing faulty operation or circuit failures. For electrical issues, it helps identify wiring faults, shorts, and intermittent connections, making troubleshooting faster and more accurate.

Conclusion

Choosing the best automotive lab scope means weighing its precise diagnostic capabilities against usability and price. While some models offer advanced features like multiple channels and high sampling rates, they can have a steeper learning curve or higher cost. The best automotive lab scope strikes a balance by providing accurate waveform analysis, user-friendly interfaces, and reliable durability, making it suitable for professional mechanics and serious DIYers alike.

The best automotive lab scope strikes a balance by providing accurate waveform analysis, user-friendly interfaces, and reliable durability, making it suitable for professional mechanics and serious DIYers alike. Buyers concerned about compatibility and support should look for options with comprehensive manuals and responsive customer service. Ultimately, selecting a device that fits your technical needs and budget will enhance your vehicle diagnostics and repair accuracy without unnecessary complexity.

This thoughtful approach ensures a confident, well-informed purchase aligned with your automotive diagnostic goals.
